Explore SUSE Rancher GUI

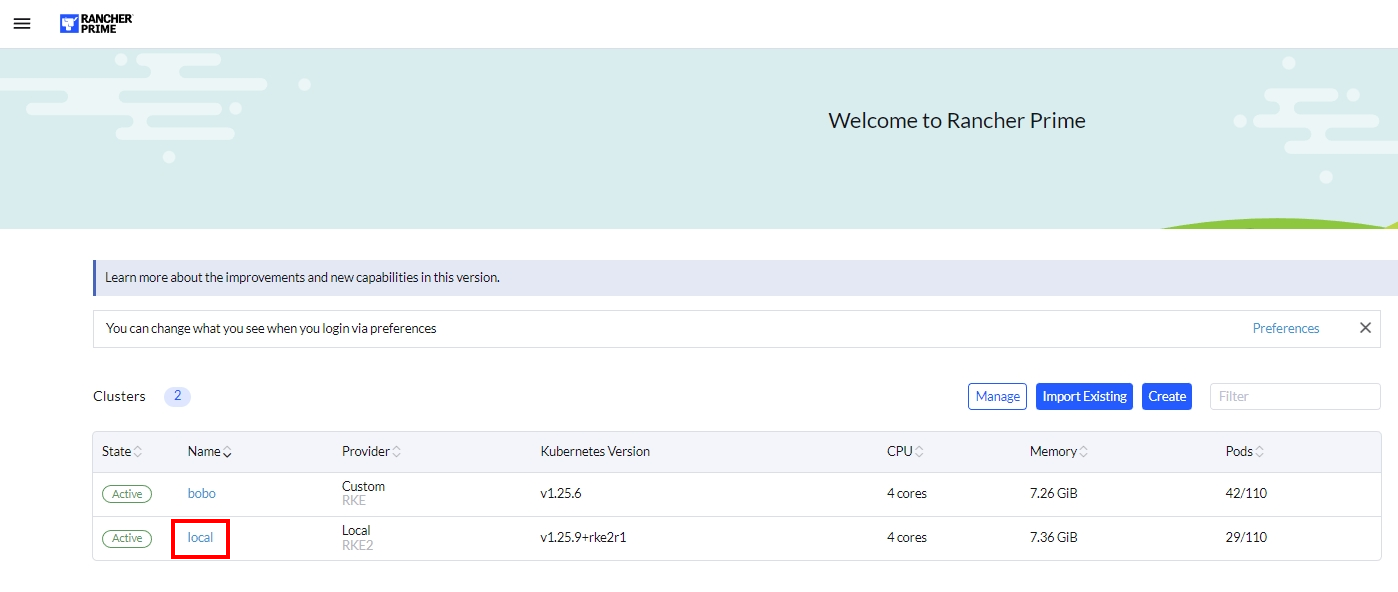

SUSE Rancher Home Page

• SUSE Rancher GUI 允許管理多個集群
  • 主頁列出了 SUSE Rancher 集群本身以及任何被管理和註冊的下游集群
    • SUSE Rancher 集群的默認顯示名稱是 local

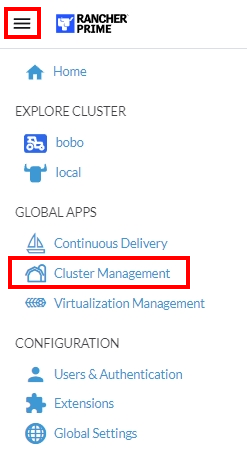

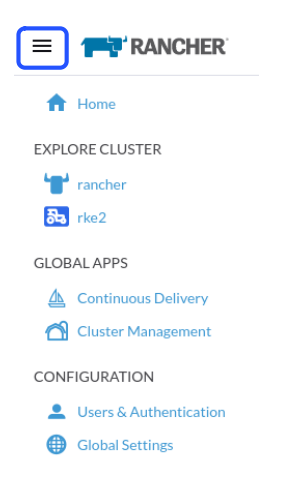

SUSE Rancher Main Menu

左上角的主菜單按鈕

• Home (首頁) → SUSE Rancher 登入頁面
• Explore Cluster (探索集群) → 下游集群的 App (應用程序)、 Service (服務)、 Storage (存儲)和其他資源的 信息 和 管理
• Continuous Delivery (持續交付) → 用於多集群應用自動化的 Git repo 配置
• Cluster Management (集群管理) → Downstream cluster (下游集群)、cloud credentials (雲憑證) 和 driver 驅動程序管理
• Users & Authentication (用戶和認證) → 本地用戶和外部認證提供商配置和角色管理
• Global Settings (全局設置) → SUSE Rancher 設定和品牌推廣

Cluster Dashboard

Continuous Delivery

• 通過持續交付，可以輕鬆管理跨多個集群的應用程序部署
  • 一次設定，多次部署
  • Cluster groups​ 是根據 Kubernetes 的標籤來分的。
• GitOps at scale
  • The app developer modifies code
    • The change is deployed on running Kubernetes clusters

Cluster Management

• 顯示當前集群的列表
  • 從最右邊的三點式菜單進行集群設定
  • 從 “Explore” 按鈕查看集群資源
• New clusters can be imported or provisioned
  • Hosted or infrastructure provider clusters require cloud credentials and cluster or node drivers enabled in SUSE Rancher

Users & Authentication

• User management
  • Local
  • External

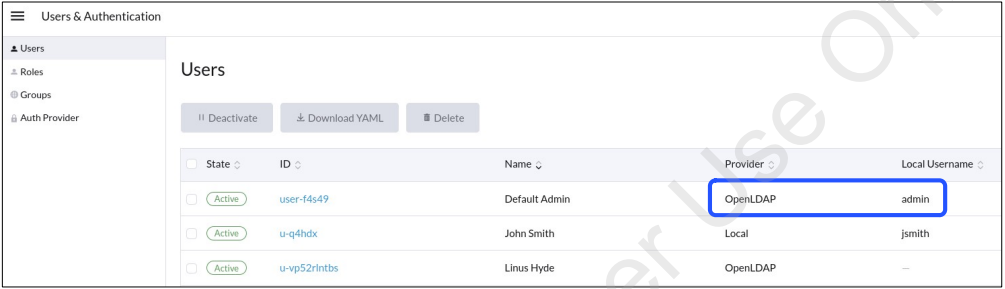

    • 用於設定的用戶賬戶將被映射到 local 本地管理用戶上

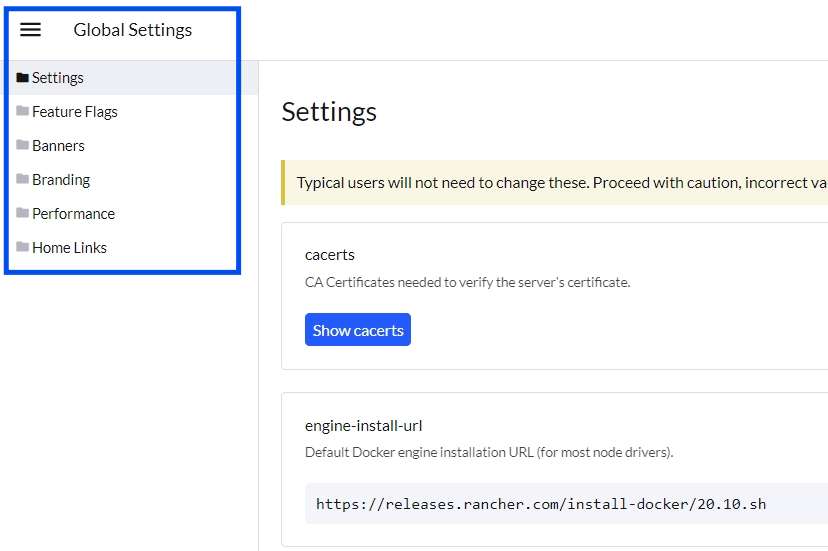

Global Settings

• 修改 Advanced Settings (高級設置)時必須小心
• Feature Flags (功能標誌)是為了測試目的
  • 不建議用於生產系統

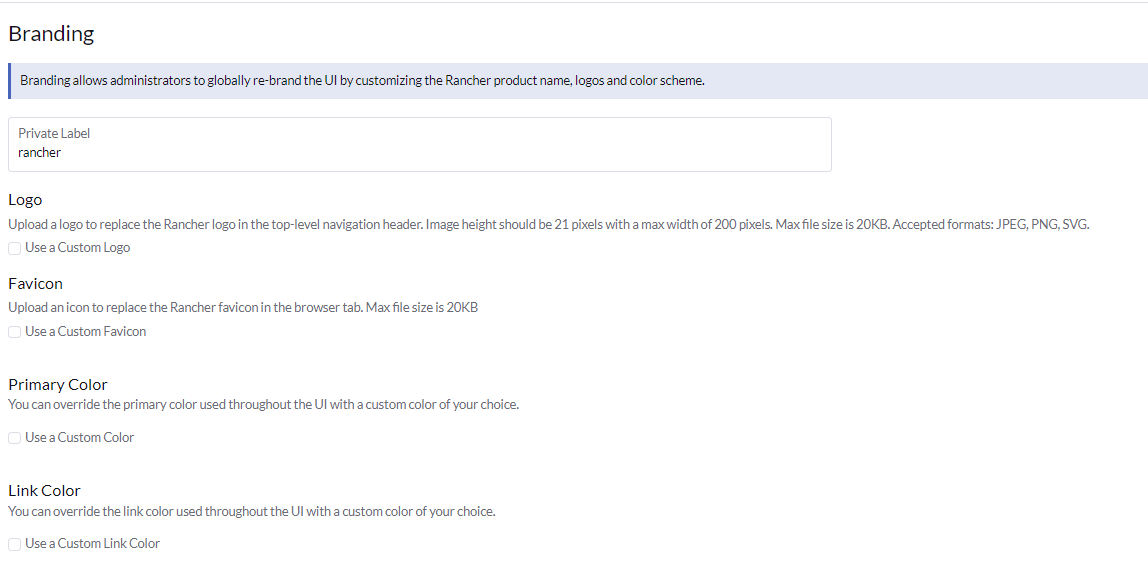

• Branding
  • Company logo
  • Company colors

Configuration for Branding

Accessing Cluster Dashboard (1/3)

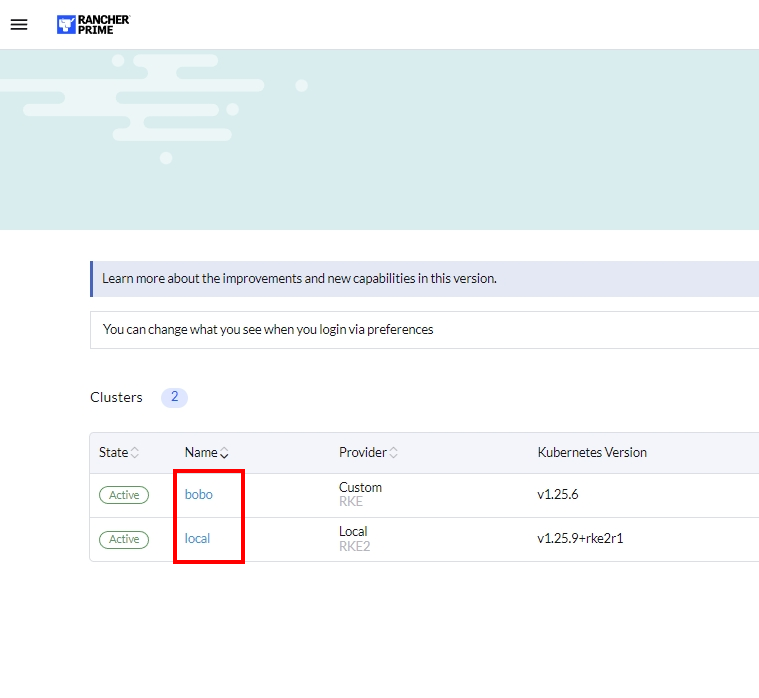

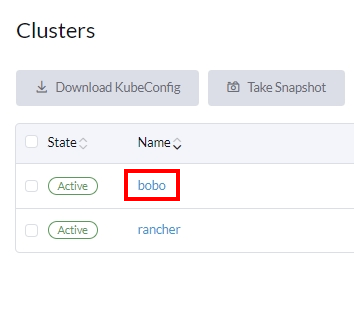

• Option 1: 從 SUSE Rancher Home 裡面的集群列表中點擊

Accessing Cluster Dashboard (2/3)

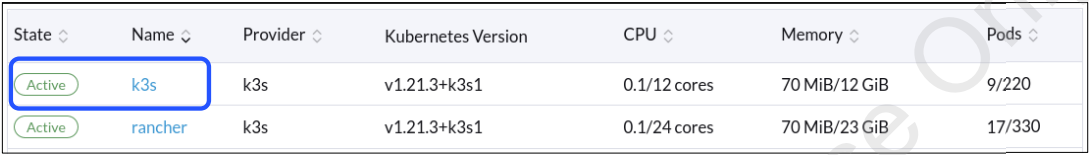

• Option 2: Click from the Main Menu cluster list

Accessing Cluster Dashboard (3/3)

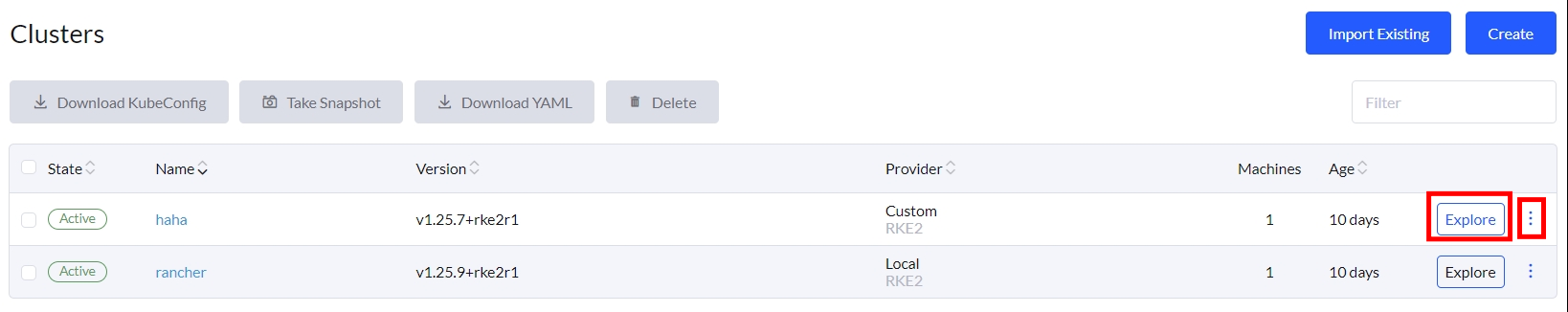

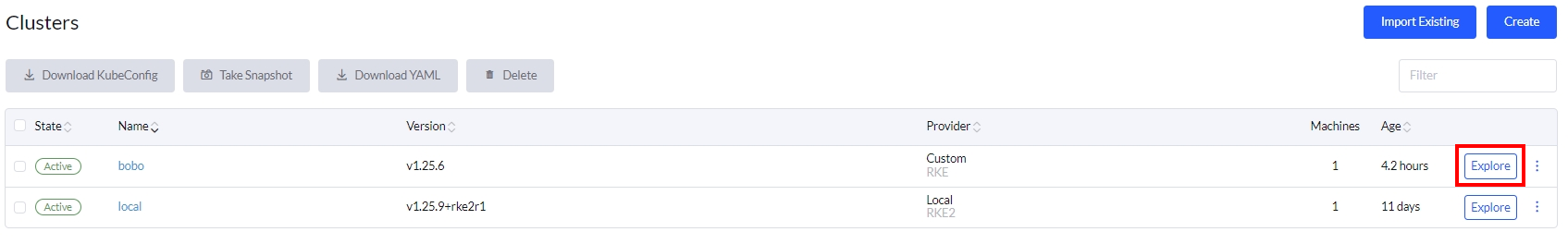

• Option 3: Click Explore button from Cluster Management view

Cluster Dashboard

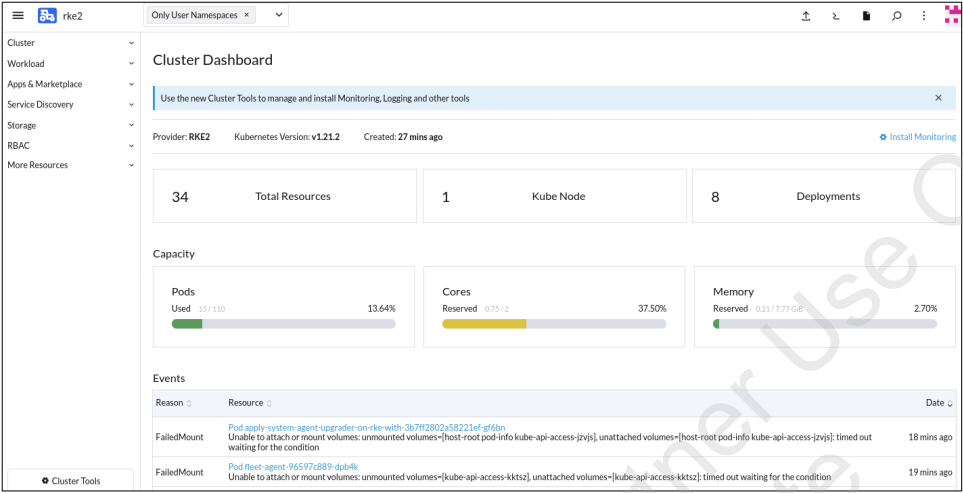

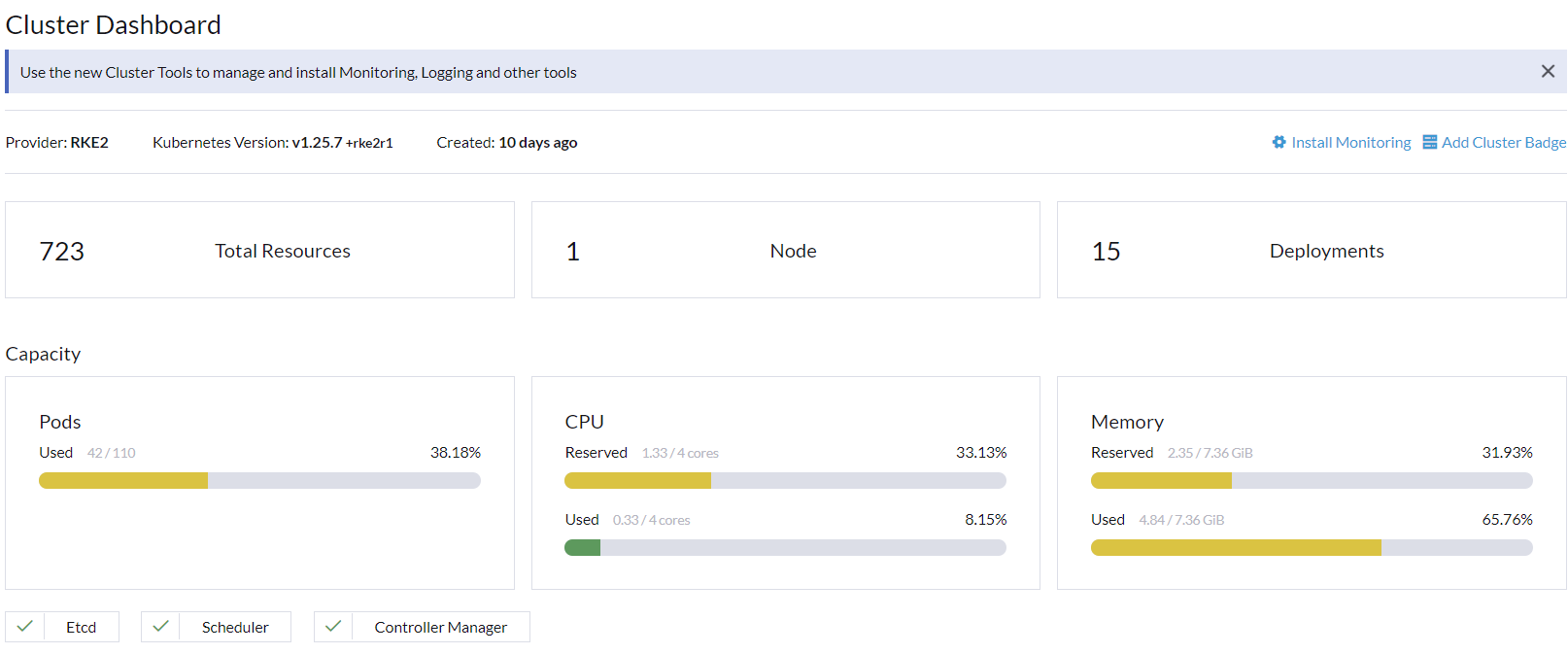

• 顯示基本的資源和使用信息
• 如果部署了 monitoring (監控)，則顯示圖形集群指標

Cluster Events

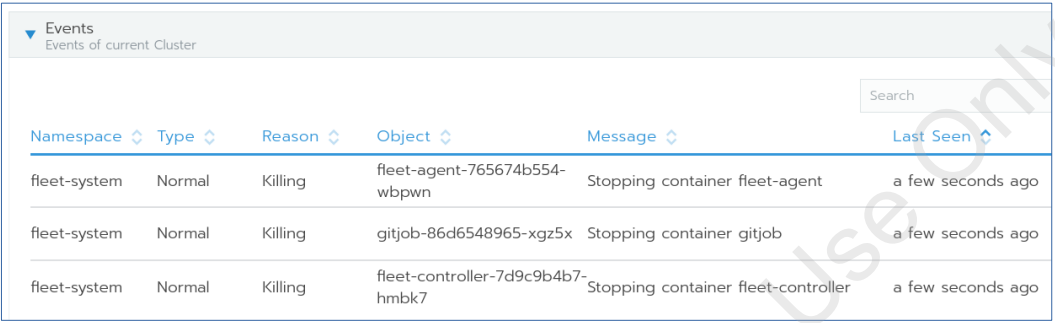

• 集群的近期事件列表顯示在利用率統計信息下方

Cluster Menu

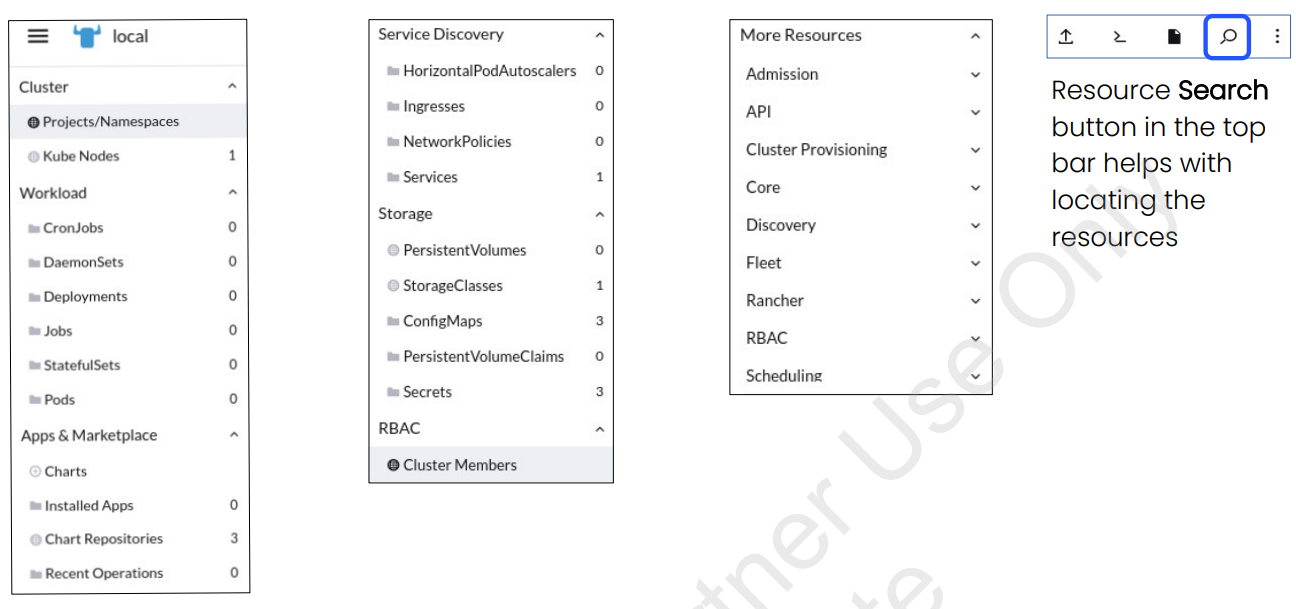

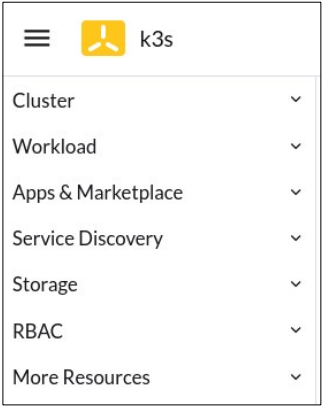

• Cluster: Projects/Namespaces and node information
• Workload: Pod, deployment and daemon set details
• Apps & Marketplace: Chart repositories, app oinstallation and information about installed apps
• Service Discovery: Services and ingresses
• Storage: Storage classes, persistent volumes, config maps and secrets
• RBAC: User and role assignments for the cluster
• More Resources: All other Kubernetes resources

Menu Items for Cluster Resources

Cluster Management View

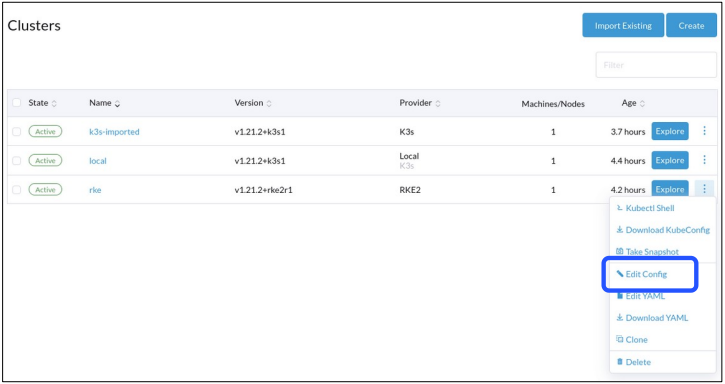

• Cluster configuration details are available from Main Menu → Cluster Management → Triple Dot Menu → Edit Config

Edit Cluster with YAML

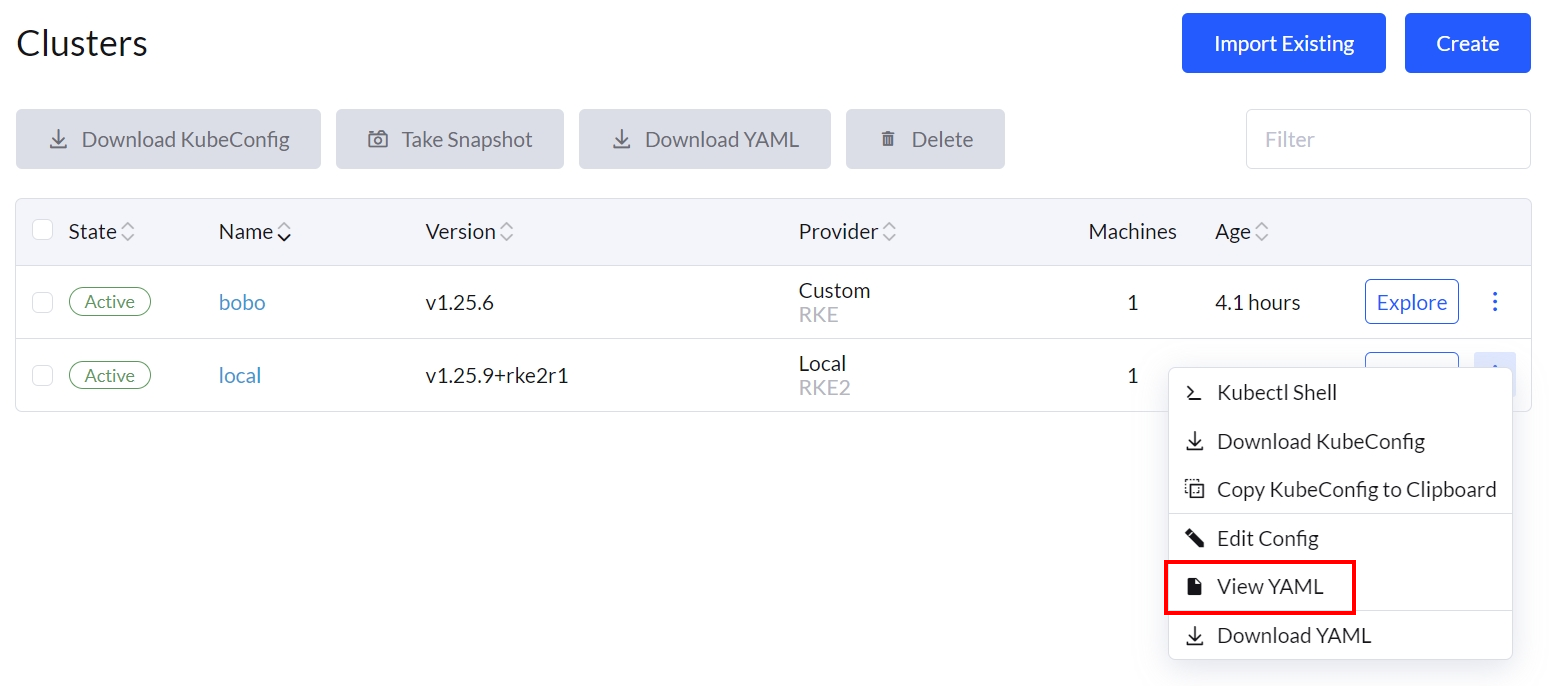

• SUSE Rancher 提供了 YAML view 的集群配置
• Edit YAML 可以顯示在圖形化介面中看不到的額外細節
  • 這個選項可以讓你快速地進行變更

Cluster Management Tasks

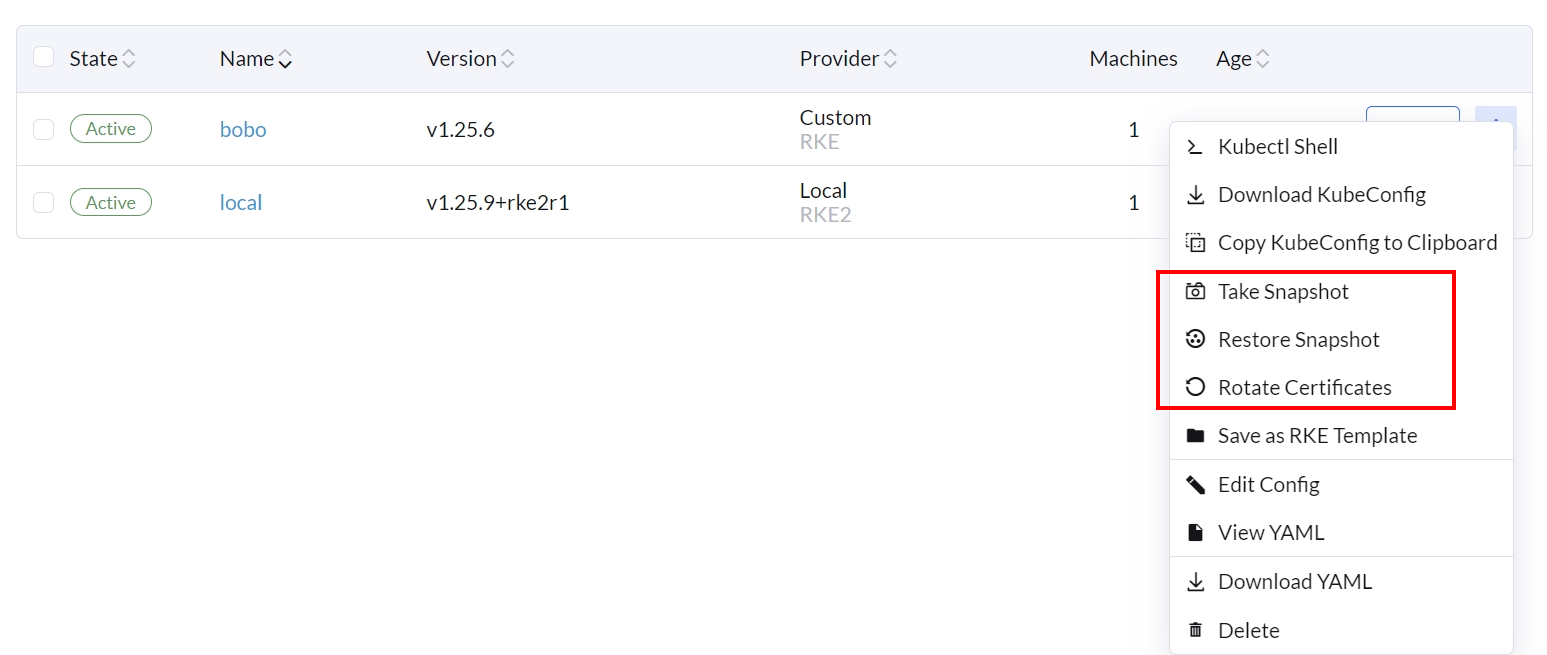

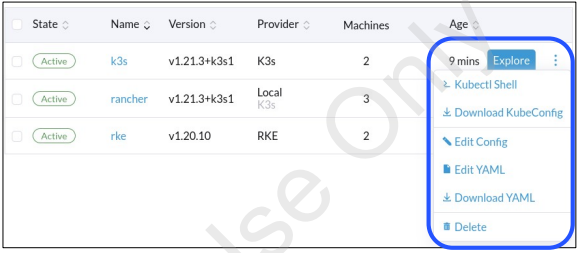

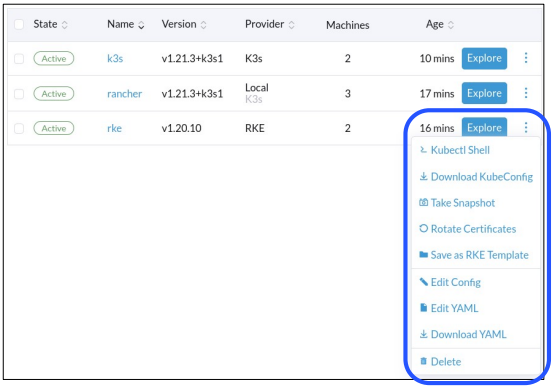

• 其他選項的可用性，如 Take Snapshot (採取快照)、 Rotate Certificates (更換證書)和 Save as RKE Template (保存為 RKE 模板)，取決於集群類型
  • SUSE Rancher provisioned clusters have more functionality than imported clusters

Cluster Related Information (1/5)

• Click on a cluster from the list

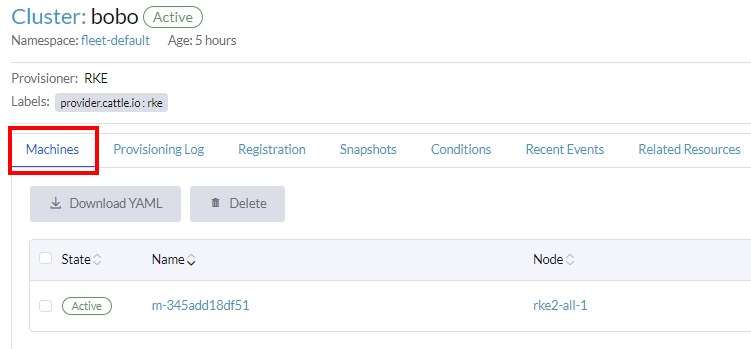

• Machines tab 提供有關當前集群節點、它們的狀態和角色的信息

Cluster Related Information (2/5)

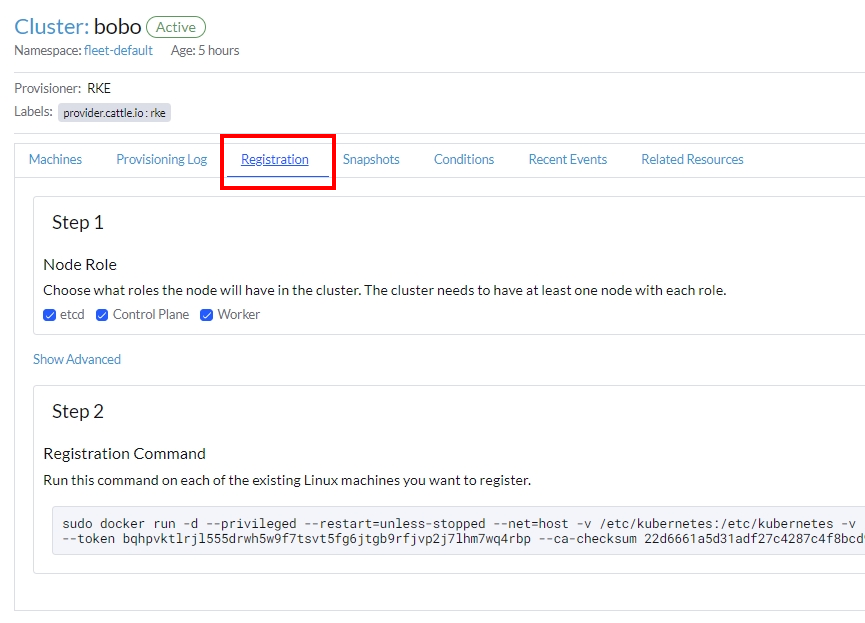

• Registration tab displays:
  • 節點註冊的角色
  • 用於註冊的命令

Cluster Related Information (3/5)

• Snapshots tab 包含關於所拍快照的信息
  • Automatic
  • Manual
    • 要拍攝一個新的手動快照，請點擊 Snapshot Now
• Restore from the Triple Dot Menu

Cluster Related Information (4/5)

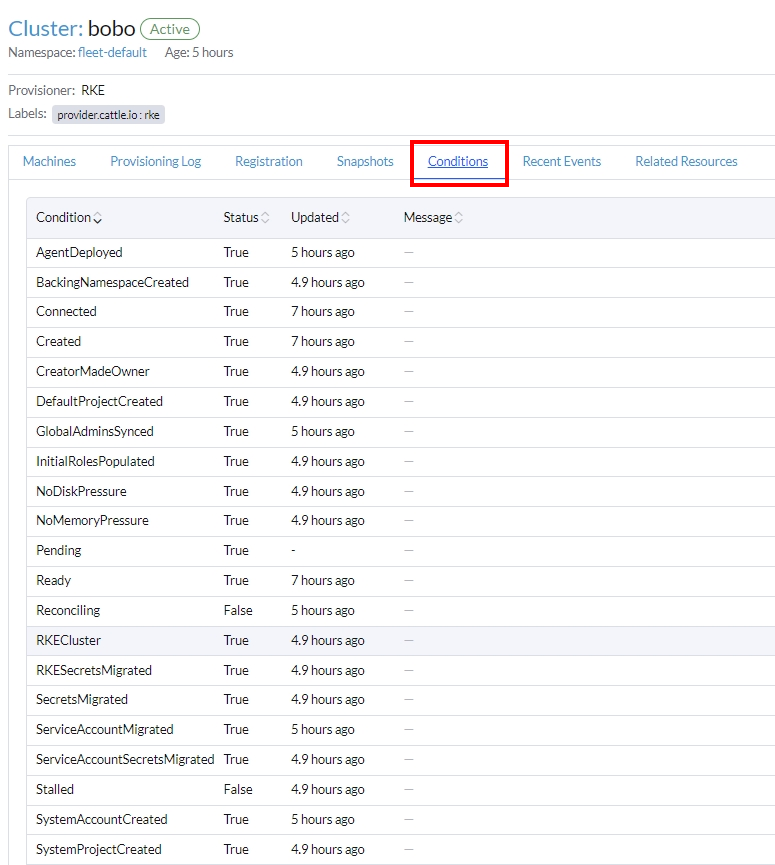

• Conditions tab contains information about:
  • Cluster type
  • Cluster status
  • Deployed components and their statuses
  • State of the cluster processes
  • Initial roles
  • Disk and memory pressure status

Cluster Related Information (5/5)

• Related Resources tab contains information about:
  • State
  • Type
  • Name
    • 超鏈接以便於導航

View Cluster and Node Agents

Cluster Agent

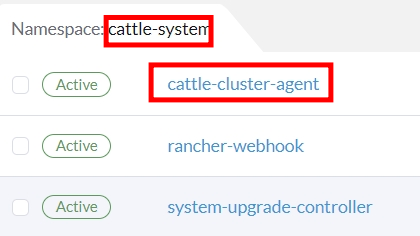

• The name of the agent is cattle-cluster-agent
• The type of the Kubernetes resource is Deployment
  • Replicated for high availability
• Connects to the Kubernetes API of the cluster
• Main Menu → <CLUSTER> → Workload → Deployments → cattle-system

Node Agent

• The name of the agent pod is cattle-node-agent
• The type of the Kubernetes resource is DaemonSet
• Runs on every node for the Kubernetes distribution if required
  • For example K3s clusters do not require node agent for snapshots
• Interacts with the nodes
  • 執行集群操作，如 Kubernetes 升級、快照等
• Main Menu → <CLUSTER> → Workload DaemonSet → cattle-node-agent

Import an Existing Kubernetes Cluster

Importing a Cluster

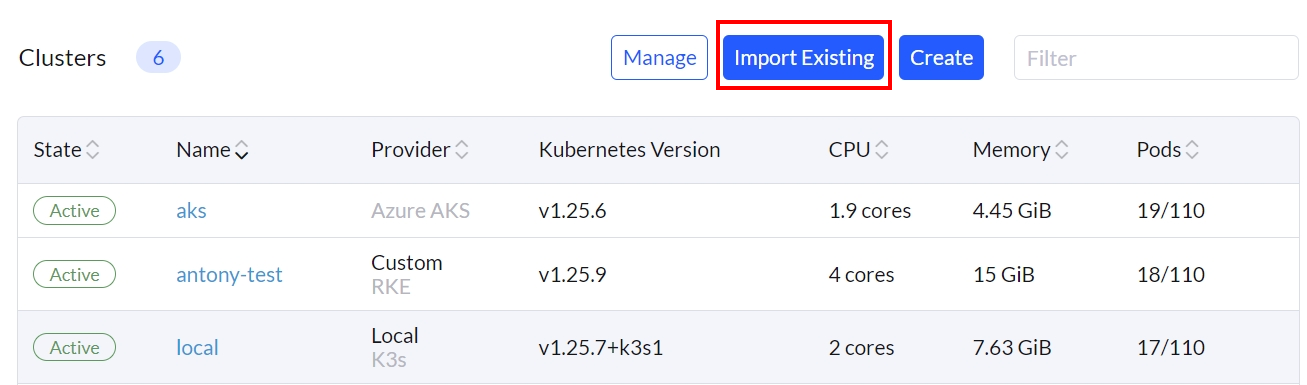

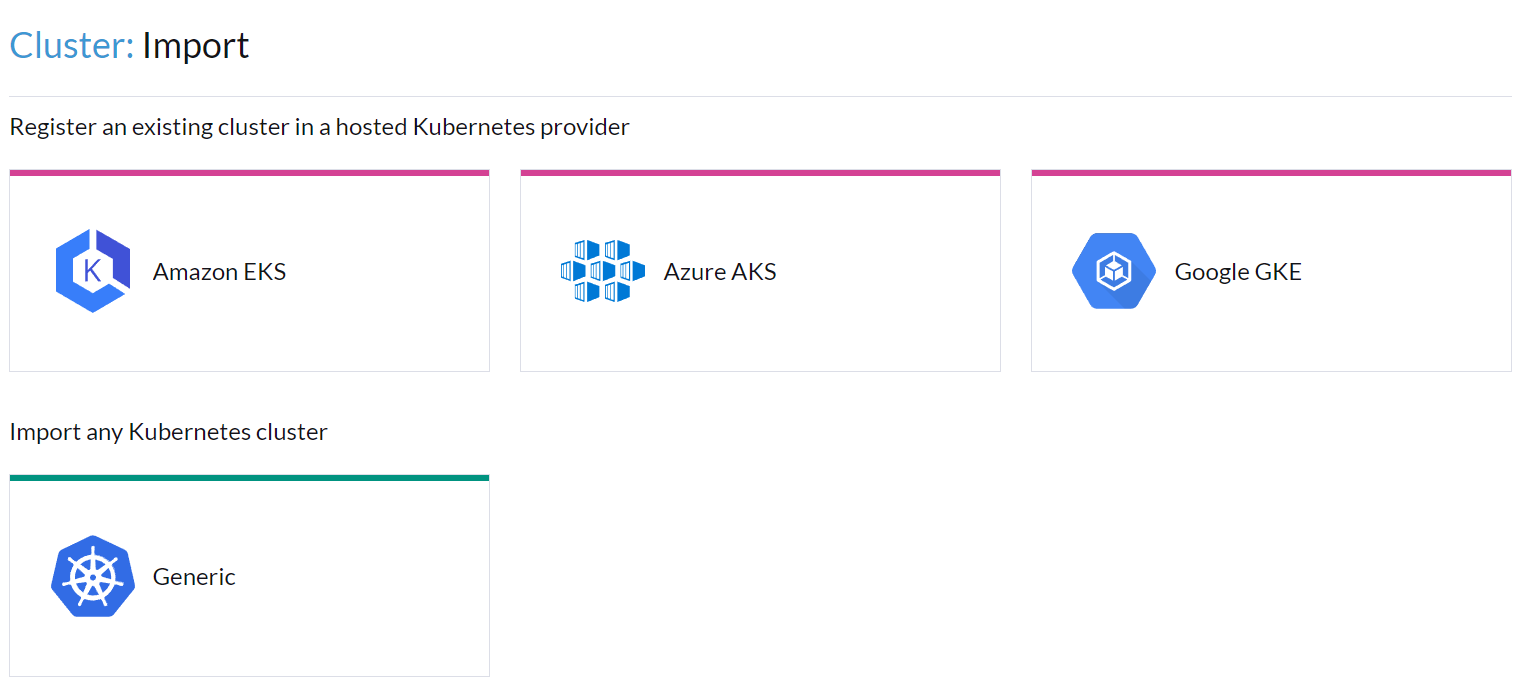

• From SUSE Rancher Home page, click Import Existing

Cluster Type

• Imported clusters can run on infrastructure provider’s cloud or on physical/VM nodes

Cluster Name

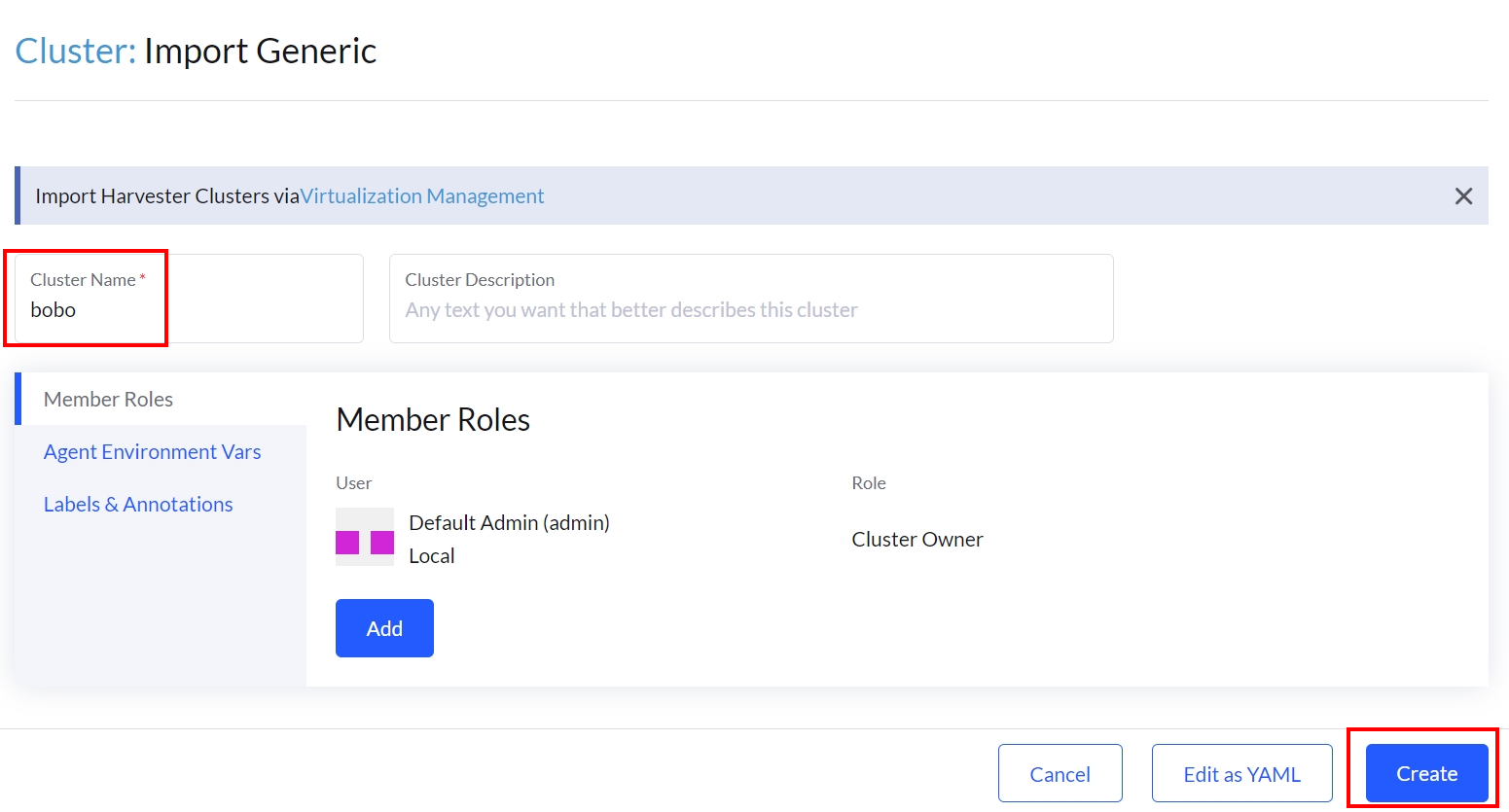

• Enter Cluster Name and other configuration details
• Click Create

Registration Details

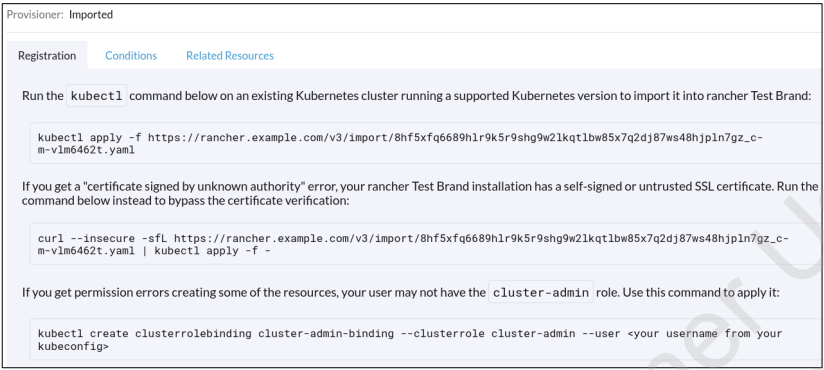

• Cluster registration information and requirements will be displayed
  • The Registration tab contains alternative ways for completing the registration
  • kubeconfig file for the cluster is required on the node the command is run on

Updated Cluster List

• The imported cluster will be listed
  • Provider displays Imported until the cluster agent is up and running
    • It then changes to match the actual Kubernetes distribution

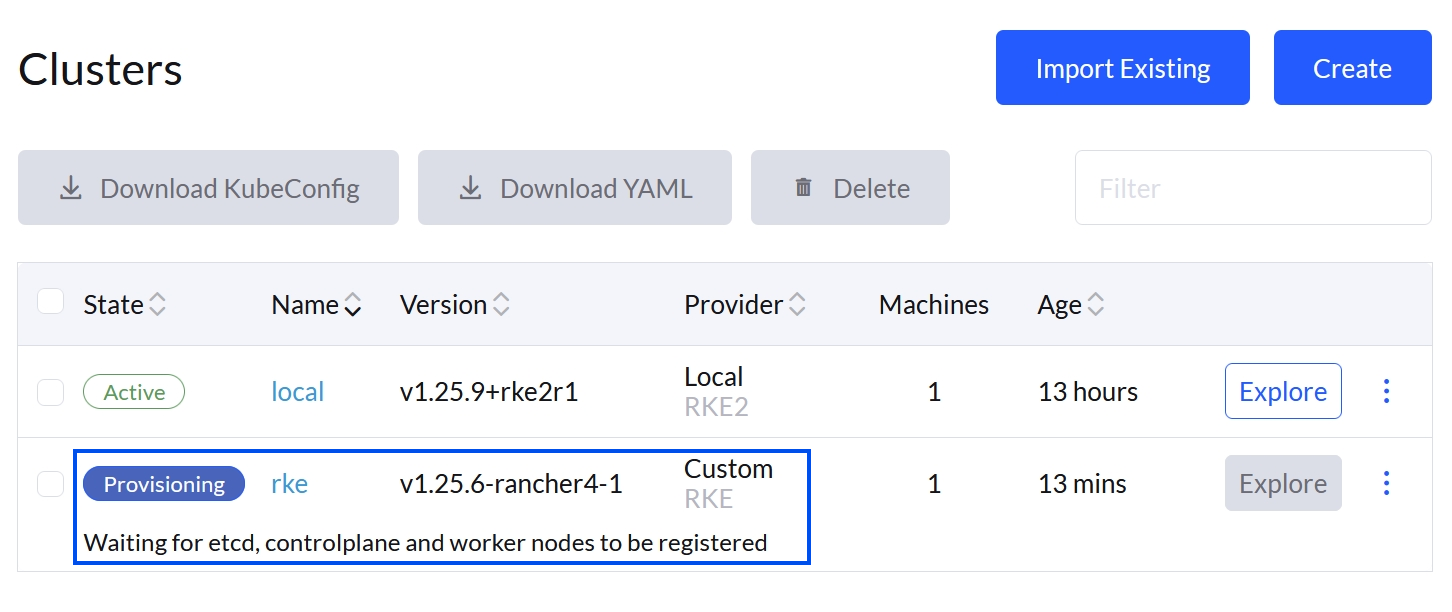

  • For a healthy cluster, the State should reach Active in minutes

Provision an RKE Cluster on Existing Nodes

RKE Cluster Provisioning on Existing Nodes

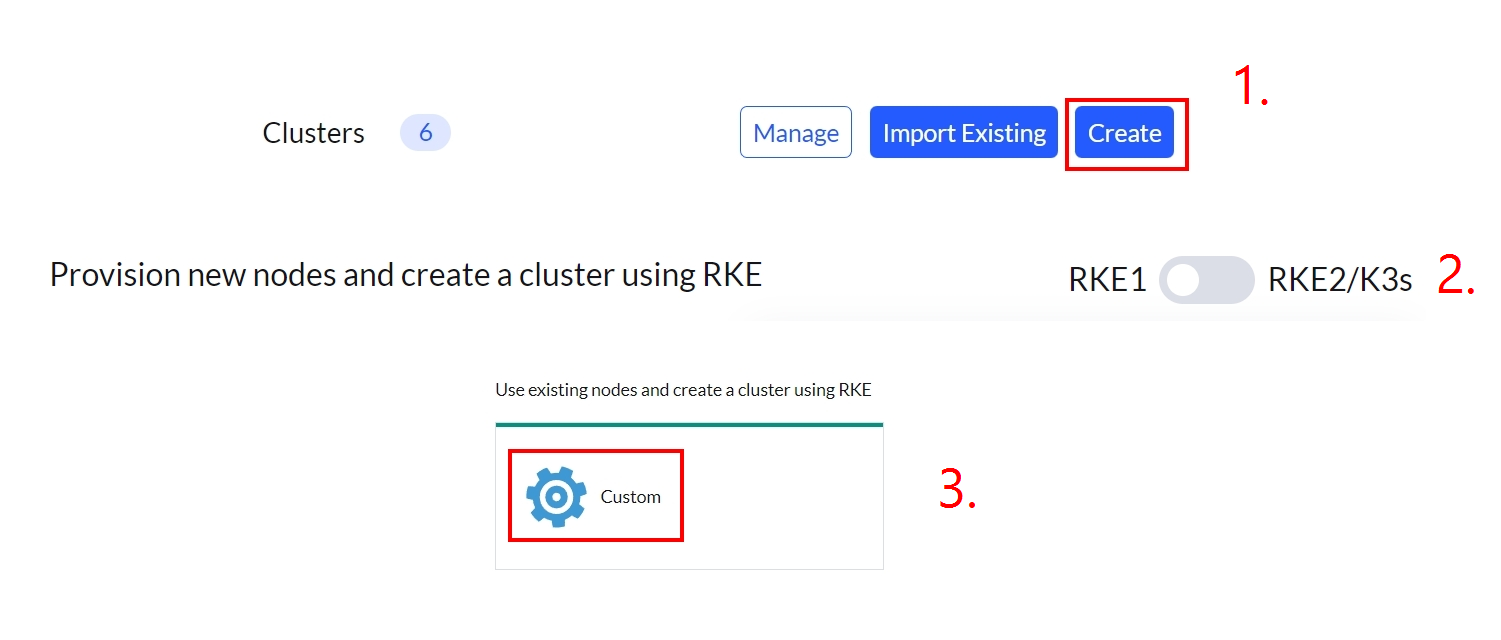

• From SUSE Rancher Home page, click Create
• Verify RKE1 is selected
• Click Custom

RKE Cluster Configuration

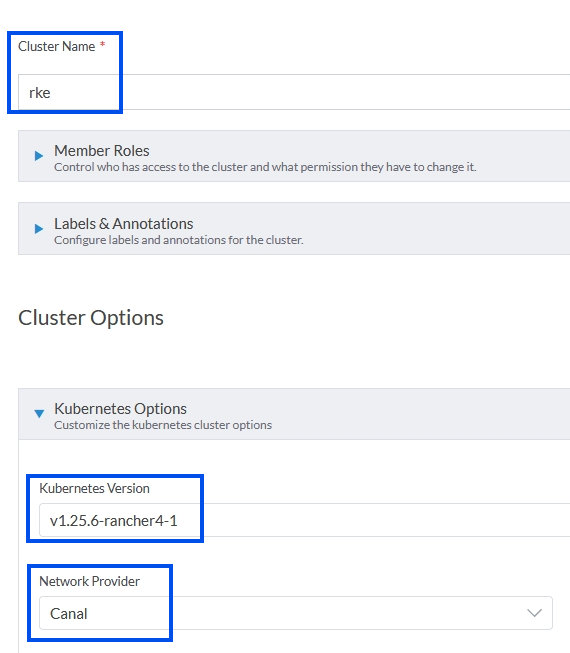

• Enter Cluster Name
• Select Kubernetes Version
  • The newest available is the default
• Select Network Provider
  • Canal is the default

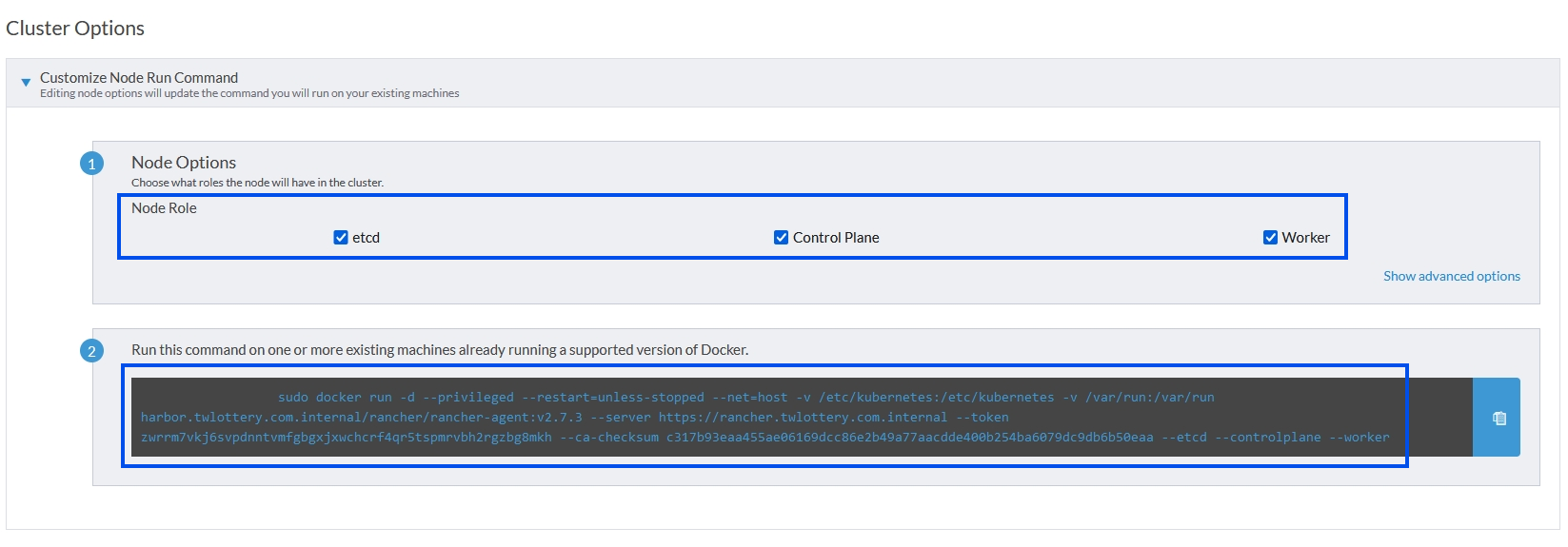

Cluster Roles

• Select the cluster roles for the node
  • etcd, Control Plane and/or Worker
• Copy the command box content to clipboard
  • 在具有預期角色的節點上運行命令
  • docker.service 必須正在運行。
  • 使用者必須是 docker 群組的成員

Docker Container Deployment

• Docker images are downloaded if not available on the node
• Images are extracted
• Containers are created
• Node starts to communicate with SUSE Rancher API
  • The GUI displays a message: 1 new node has registered

Unable to find image 'rancher/rancher/rancher-agent:v2.7.3' locally
v2.7.3: Pulling from rancher/rancher-agent
cac05f14fd97: Extracting  24.58MB/47.2MB
cac05f14fd97: Pull complete
b76012a3083a: Pull complete
f19fb49c5ef4: Pull complete
452025625e7f: Pull complete
933e576da79e: Pull complete
3524f405b0a8: Pull complete
dae8b18ada91: Pull complete
Digest: sha256:3b3ea0427211a530a22c2e8f0146fbd8324dd5827496cd289aa43202788fd50b
Status: Downloaded newer image for rancher/rancher/rancher-agent:v2.7.3
1a7413595f54afa888783493dd29c9c417627d529dd0e925073533e9055e4af4

RKE Cluster Provisioning

• SUSE Rancher GUI 顯示 RKE 集群的設定過程
  • 狀態將在 Provisioning (供應)、Waiting (等待)、 Error (錯誤)、 Updating (更新)等過程中運行，直到所有 Container 都被正確啟動
  • 集群 State (狀態) 需要 5-10 分鐘才能達到 Active (激活)狀態
• 重複角色配置並設定其他節點

Management Options for Clusters

• 請注意，與 import (導入) 的集群相比，SUSE Rancher provisioned 集群有更多的管理選項

Questions:

Q1: SUSE Rancher 集群的默認預設名稱是什麼？

Q2: 集群的 Cluster Dashboard (儀表板) 顯示什麼樣的信息？

Q3: 與 SUSE Rancher 一起使用的 Kubernetes 節點的 role names (角色名稱) 是什麼？

Q4: Import (導入) Rancher 後，會創建一個新的 Kubernetes 集群，對還是錯?
